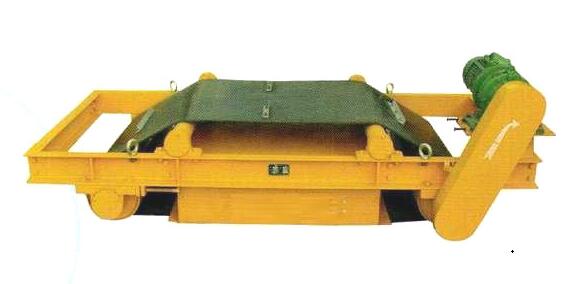

產品名稱：RCYC、RCYD系列皮帶自卸式永磁除鐵器

出品單位：濰坊沃森重工有限公司

RCYC、RCYD系列皮帶自卸式永磁除鐵器簡述：

    　　RCYD、RCYD系列永磁自缷除鐵器是由高性能永磁磁芯、棄鐵皮帶、減速電機、框架、滾筒等部分組成，與各種輸送機配套使用。用于從非磁性物料中自動清除鐵磁性物質。RCYD、RCYC系列懸掛自卸式永磁除鐵器是一種自動卸鐵式除鐵裝置，工作時將不斷吸附在除鐵器上的鐵磁性物質通過卸鐵皮帶的旋轉自動拋出，達到自動卸鐵目的。該機型應用范圍廣、節能省電、維護方便、故障率極低，在極其惡劣的環境中運行穩定可靠，是眾多廠家采用較多的機型。 擁有防爆型。

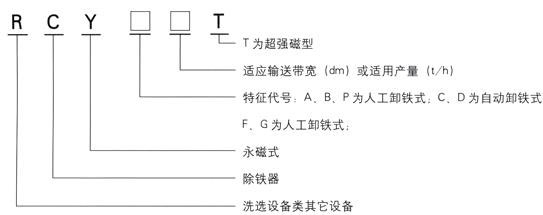

永磁除鐵器型號意義的表示：

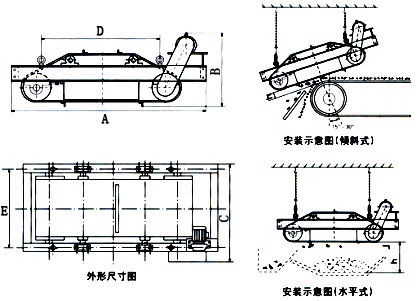

RCYC、RCYD系列皮帶自卸式永磁除鐵器安裝示意圖：

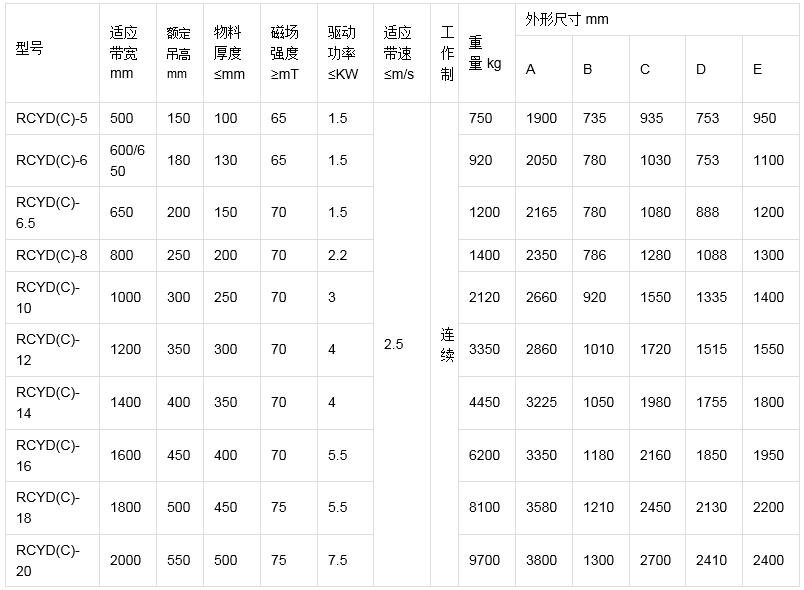

RCYC、RCYD系列皮帶自卸式永磁除鐵器主要技術參數：  （ 以下參數供參考，可根據客戶要求訂做）

RCYC、RCYD-T系列皮帶自卸式永磁除鐵器擁有超強磁型：T1型磁場強度90mT T2型為120mT T3型為150mT

RCYD (C) series of permanent magnetic separator dump by high performance permanent magnetic core, abandoned iron belt, gear motor, frame, rollers and other components,, perfect double pole structure, ensure the machine in harsh environments without failure the long run.

Technical characteristics:

◆ magnetic circuit design using computer simulation, perfect double pole structure, the magnetic field strength, gradient large suction.

◆ High-performance iron-boron magnetic source made, high energy product, demagnetization, eight demagnetization not exceed 5%.

◆ drum-shaped roller structure, with automatic correction function, sealed bearing, good sealing performance, able to adapt to a variety of harsh environments.

◆ belt automatic unloading of iron, can protect the long-term trouble-free continuous operation.

◆ control section with belt conveyor chain, to achieve local manual control and centralized control in two ways.

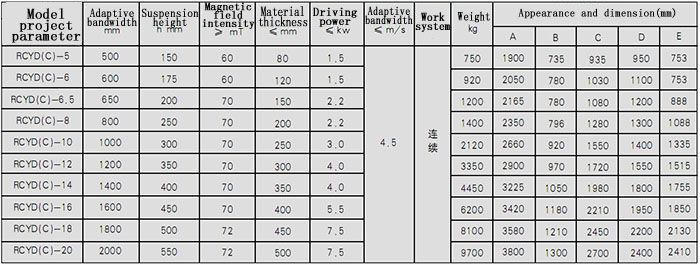

The main technical parameters:
